Pizzeria - now on AIR [ PART-2 ]
This is the online pizza ordering portal which utilizes the power of serverless service by AWS.
In the previous post, we build the APIs for ordering, updating, and canceling an order that can be used as the backend of an ordering system.
In this post, we will put in a path to use the Facebook support of chatbot APIs for replicating the same ordering system from Facebook Messenger. To keep this post small and avoid TL;DR we will be focusing just on basic things like setting up the connection to Facebook to backend node.js app and only respond with a simple “Hello” message from it.
So, let's start building our chatbot.
Set Up for Facebook chatbot :

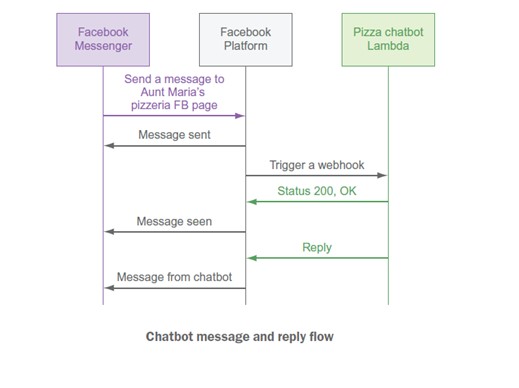

We need a Facebook application that will link with your Facebook page which acts as a frontend of your messaging and all the heavy lifting of integration is done through the Facebook Application. Facebook Application for chat-bot isn't independent, like games developed on Facebook. There has to be some front-end page that our application will latch him to do what it is meant to be, its more like a symbiote.
Steps for creating a Facebook Chatbot:
- Setup a Facebook page.
- Create a Facebook application that will serve your chatbot and connect it to Facebook page.
- Implement your chatbot and deploy it. BackEnd – require AWS lambda, API Gateway.
- Connect your backend chatbot app to your Facebook application.
We will be using the Claudia Bot Builder to interact with Facebook API's for chatbot as it abstracts away the various messaging platform APIs and provides a simple, unified API for building you chatbots
Setting up the Claudia Bot Builder in local.
Create a new folder named facebook-chatbot” and initialize you NPM project and create the entry point to bot.js, this is the entry point for your application
mkdir facebook-chatbot
cd facebook-chatbot
npm init
Installing Claudia:
To install Claudia and to be able to use the Claudia command in your terminal run the following command:
npm install claudia -g
Add Claudia Bot Builder as a project dependency
install claudia-bot-builder –save
Inside your project folder facebook-chatbot”create a file name “bot.js” and put the following code:
Set Up for Facebook Messenger Setup:
We now need to
- Create Facebook page
- Create Facebook app
Creating Facebook Page:
To create a Facebook page visit Facebook Page Creation

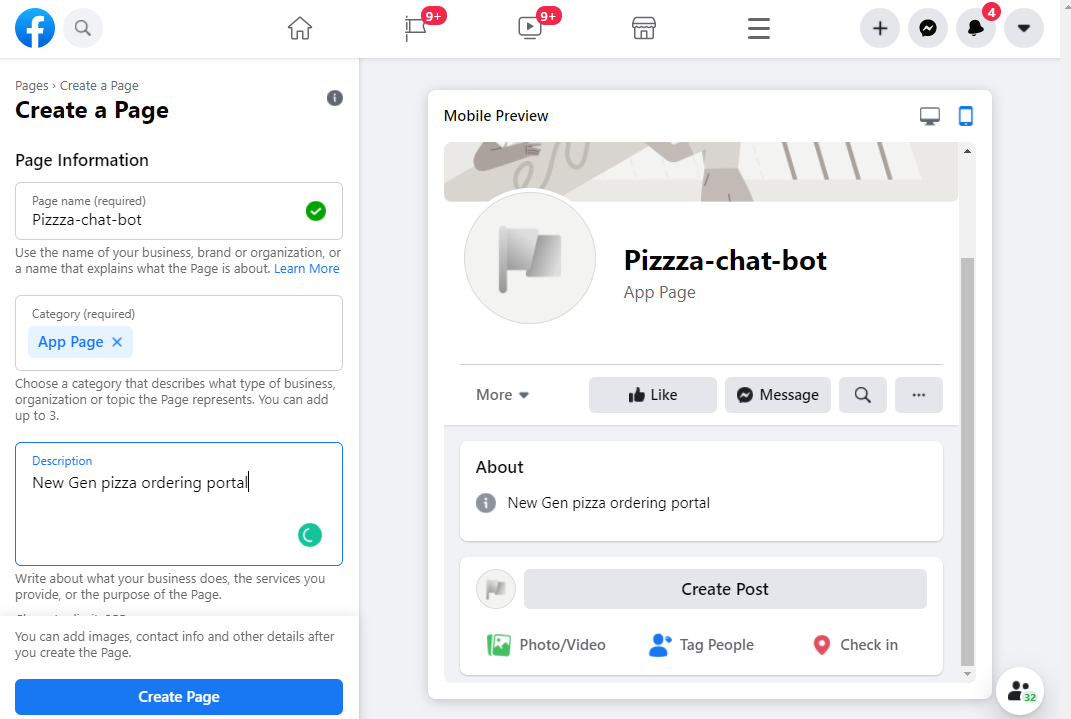

Create page looks like the below snap, use your imagination for filling up ”page name and description” and for category select ”App Page”
Creating Facebook Application:

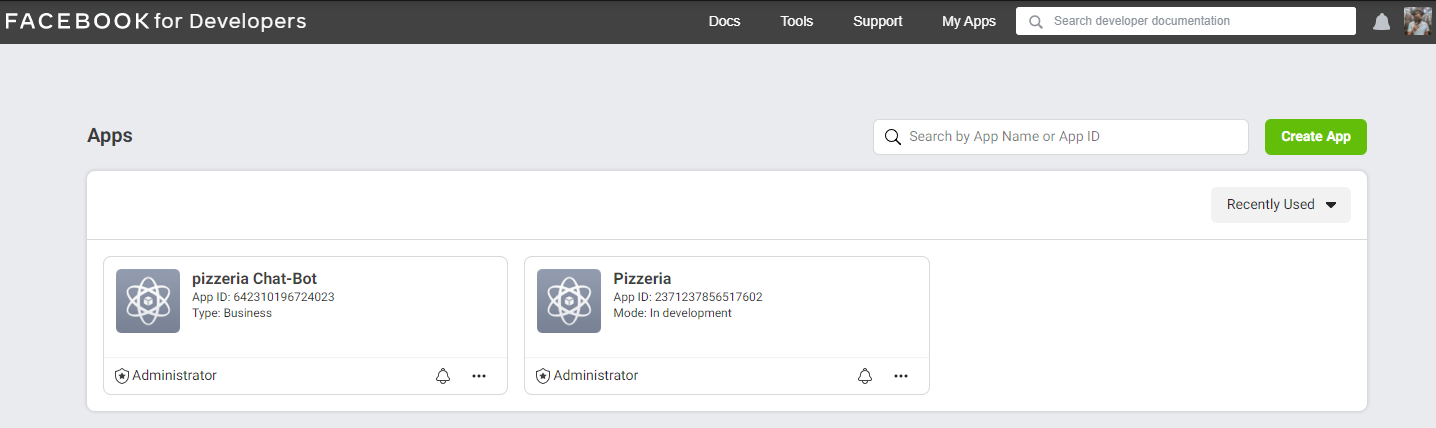

The next step is to create the Facebook Application, to do so visit https://developers.facebook.com/apps/ and select the “Create App”
At the time of writing this post page look like this, it may be different for you since Facebook folks keep pushing the UI changes.
Once you click on the “Create App” it will ask you a set of questions based on your app
- What do you need your app to do? Select Manage Business Integration
- App Display Name: pizzeria-ChatBot
- App Contact Email: <your email id>
- App Purpose: Yourself or Your own business

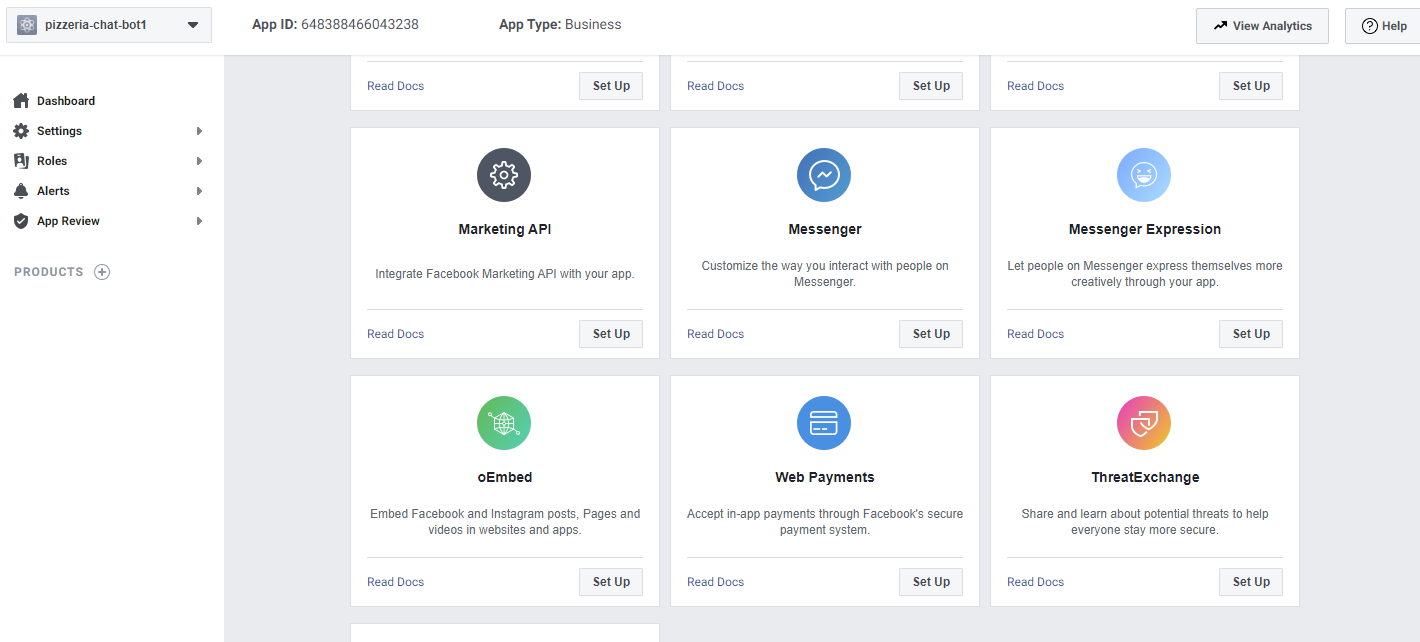

Next, we add a product to our app which will be “Messenger” click on the Set-Up
Now don't close this page as we need to add some configuration which we generated from the backend
Switch back to your terminal window and navigate to your project folder ”facebook-chat-bot” we created above, and run the below command
claudia create --region us-east-1 --api-module bot --configure-fb-bot

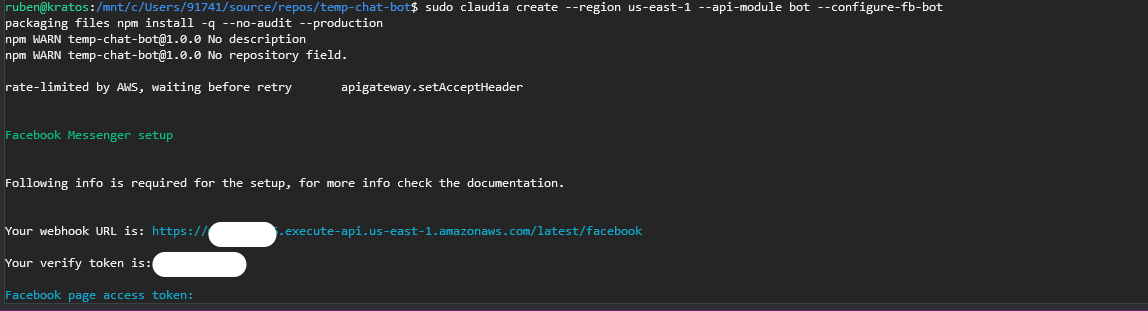

It will take some time for Claudia to set up the thing like API Gateway, AWS Lambda, and IAM permission in the cloud. After your code is deployed to an AWS Lambda function the command will generate and print the “webhook URL” and “verify token” which you'll need to configure your chatbot application.
Keep the terminal open, because the process is not completed yet.
Go back to the Messenger platform setting in your browser and fill out the webhook URL and verify the token

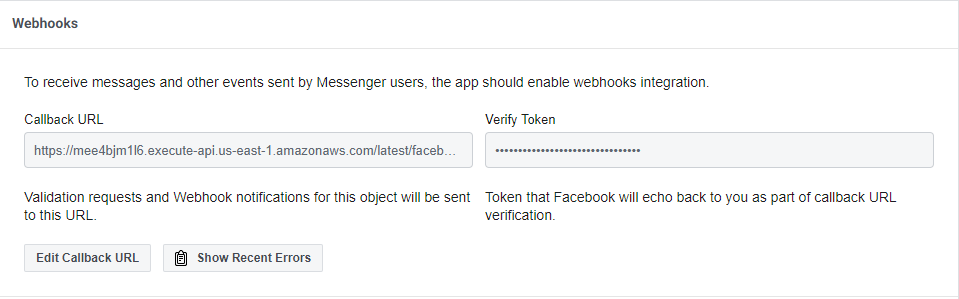

The Webhook section should look like the below image.

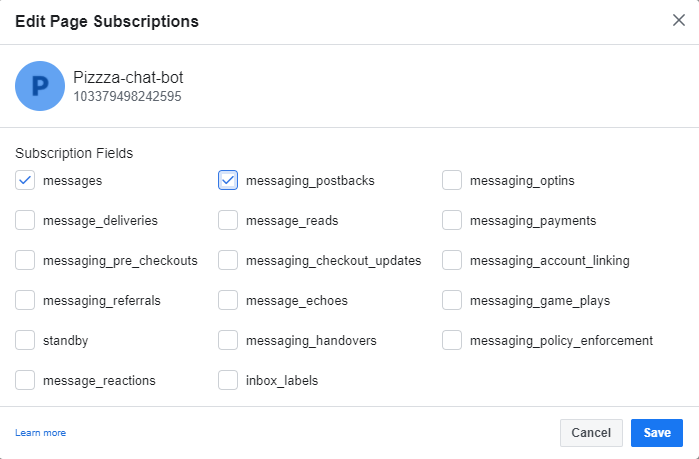

Now under the Webhooks section of the messenger setting and select “messages” and “messaging_postbacks” in the subscription field.
I didn't explore more about this webhooks but what I understand is that these events were responsible for capturing the message typed in the messenger app, later which is used in the development of the business logic of the ordering system

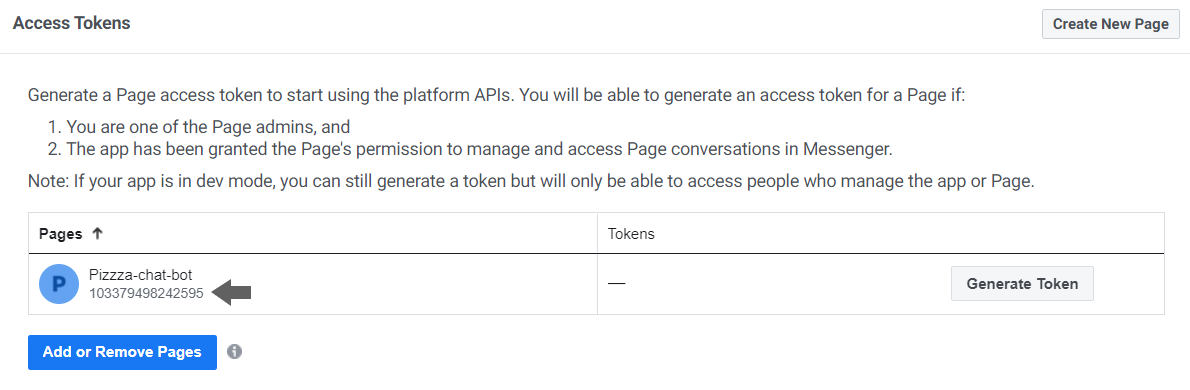

The next step is to get your Facebook page access token. To do so, go to the Access Token of the Messenger Product and select the Facebook page you created earlier from the dropdown menu, and click the “Generate Token” and press enter

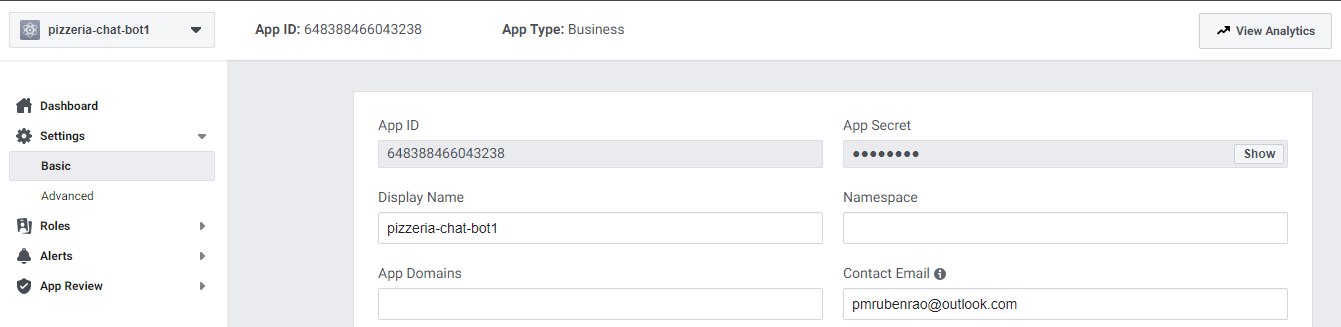

The terminal would again ask you for App secret which can be found under the Application> Setting > Basic as shown in the above image.
Claudia BUG fix for Facebook API
There is an issue with the Claudia bot Builder library file for Facebook due to a recent change in the Facebook Messenger API 4.0
You need to do some changes in the Claudia bot builder <project folder>/node_module/Claudia-bot-builder/facebook/lib/script.js file to make it work
use your "page_id" in the changed link, otherwise, you may get this error below
You can read more about this issue in the below post
https://github.com/claudiajs/claudia-bot-builder/pull/133
https://stackoverflow.com/questions/53778224/how-to-solve-the-parameter-subscribed-fields-is-required-error-while-subscribi
If you run into the issue even after changing the above code, run
npm package “patch-package” add it to the dependencies of your project in the package.json file this will force Claudia to use the new modified <Yourfolder>/node_module/Claudia-bot-builder/facebook/lib/script.js file for building our infrastructure for the chat-bot.
After fixing this you need to clean up the resource created by the previous instance run, for example removing the API gateway, lambda function, and the IAM role created by Claudia and run the above command again.
claudia create --region us-east-1 --api-module bot --configure-fb-bot
Put in the Webhook URL and Token from the terminal to your Facebook application and the “Facebook page access token” can be generated in the “Access Token” section on your application page.
After that terminal will ask for “App secret” which can be found under the “Setting -> Basic” and process is the same.
Once done terminal will output the following
Now our chatbot is all set.
Open your messenger app and try messaging your Facebook page profile like “hi” or “hello” anything you want you will get the response from the bot.js return function
“Hello from Pizzeria Chat-bot!”

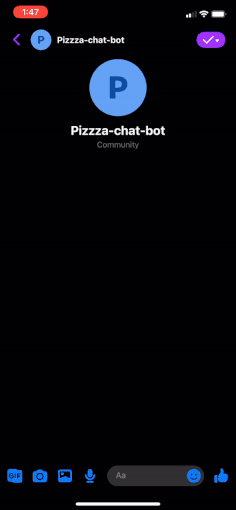

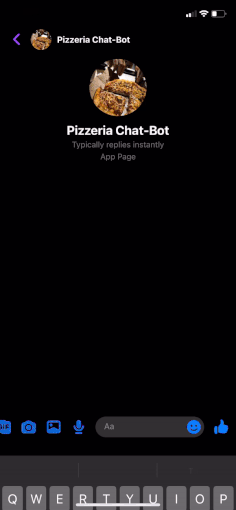

Now, this chatbot can be expanded to handle the whole ordering system. You can see full version of it in the below GIF. i'll be uploading the code in my git hub account soon for the below MVP chat-bot ordering system.
Till then, Adios Amigos
